Air brake hose and air compressor hose for handling air

Air hoses are manufactured to handle all kinds of air. Our air hoses are classified into two types according to the applications, namely air brake hose and air compressor hose.

Air brake hose
Air compressor hose

Air brake hose

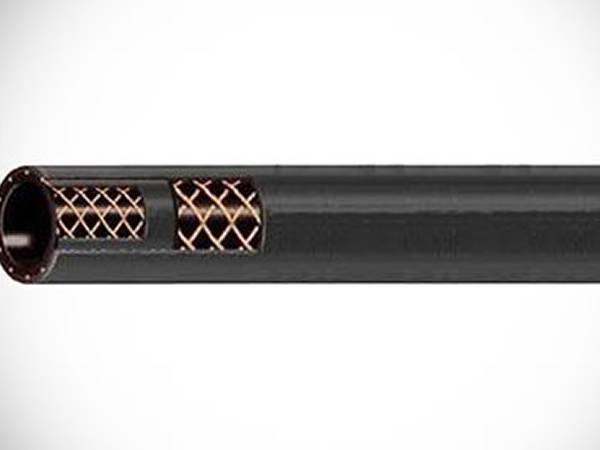

Air brake hose of four spiral construction

Inner structure of two spiral construction air brake hose

Air brake hose of two spiral construction

Air brake hoses are suitable for air braking systems of a variety of vehicles, such as buses, automobiles and trucks. Using the air hose can slow down your car at a rapid speed to avoid horrible accidents. They can withstand from -40°C to 100°C and have features of oil, weather and ozone resistance, lower inner volume expansion, flexibility and kink resistance. There are two kinds for 2 spiral and 4 spiral structures.

2 spiral construction air brake hose specifications

No.	Size	I.D.				O.D.				Weight
	Size	inch		mm		inch		mm		Weight
	inch	Min	Max	Min	Max	Min	Max	Min	Max	Lbs./ft.	kg/m
ABH-2-1/4	1/4	0.227	0.273	5.80	6.90	0.594	0.656	15.10	16.70	0.13	0.19
ABH-2-3/8	3/8	0.352	0.398	8.90	10.10	0.719	0.781	18.30	19.80	0.17	0.25
ABH-2-1/2	1/2	0.469	0.531	11.90	13.50	0.844	0.906	21.41	23.00	0.21	0.35

4 spiral structure air brake hose specifications

No.	SIZE	I.D.				O.D.				Weight
	SIZE	inch		mm		inch		mm		Weight
	inch	Min	Max	Min	Max	Min	Max	Min	Max	Lbs./ft.	kg/m
ABH-4-1/4	1/4	0.227	0.273	5.80	6.90	0.594	0.656	15.10	16.70	0.15	0.23
ABH-4-3/8	3/8	0.352	0.398	8.90	10.10	0.719	0.781	18.30	19.80	0.20	0.30
ABH-4-7/16	7/16	0.407	0.469	10.30	11.90	0.781	0.843	19.80	21.40	0.22	0.32
ABH-4-1/2	1/2	0.469	0.531	11.90	13.50	0.844	0.906	21.40	23.00	0.24	0.35
ABH-4-5/8	5/8	0.594	0.656	15.10	16.70	1.031	1.094	26.20	27.80	0.34	0.51

Air compressor hose

Our air compressor hoses are manufactured to work in the pressure of 40 bar and 20 bar. They are widely used in air tools and air compressors, which are necessary to handle compressed air.

Air compressor hose for 40 bar

Advantages and applications:

Suitable for conveying compressed air in construction, offshore, shipyards and marine industries. This hose is abrasion-resistant and can work in the temperature of -30°C to +80°C.

Specifications:

No.	I.D.		Wall Thickness	B.R.	Weight
No.	mm	inch	mm	mm	Kg/m
ACH-13-40	13	1/2	4	91	0.3
ACH-19-40	19	3/4	5	133	0.6
ACH-25-40	25	1	6	175	0.9
ACH-32-40	32	1-1/4	6	224	1.1
ACH-38-40	38	1-1/2	7	266	1.5
ACH-51-40	51	2	8	357	2.2
ACH-63-40	63	2-1/2	8	441	2.7
ACH-76-40	76	3	9	532	3.6
ACH-102-40	102	4	9	714	4.7
Note: Working pressure is 40 bar. Burst pressure is 120 bar. Standard length is 40m.

Yellow color air compressor hose working in 40 bar

Yellow color air compressor hose working in 20 bar

Air compressor hose 20 bar

Features: This hose consists of smooth rubber material tube, which makes the hose keep stable in high temperature environment. And it is weather-resistant in the temperature of -30°C to +70°C.

Specifications:

No.	I.D.		Wall Thickness	B.R.	Weight
No.	mm	inch	mm	mm	Kg/m
ACH-13-20	13	1/2	4.0	91	0.30
ACH-20-20	20	3/4	5.0	133	0.53
ACH-25-20	25	1	5.0	175	0.68
ACH-32-20	32	1-1/4	7.25	224	1.42
ACH-38-20	38	1-1/2	7.25	266	1.63
ACH-50-20	50	2	7.75	357	2.16
ACH-63-20	63	2-1/2	8.00	441	2.75
ACH-75-20	75	3	8.00	532	3.84
ACH-100-20	100	4	9.25	714	4.05
Note: Working pressure is 20 bar. Burst pressure is 60 bar. Standard length is 40m.
