EPDM Air/Water Hose - an economical option in the long term

Multi-purpose EPDM rubber air/water hoses are our most popular hoses widely used in industry, construction, rental, agriculture and marine applications. EPDM has excellent resistance to ozone cracks, aging, sunlight and chemicals as well as limited oil resistance. EPDM air hose can be exposed to sunlight and competent to outside applications. Compared with PVC air hoses, EPDM rubber air hose remains flexibility below zero centigrade.

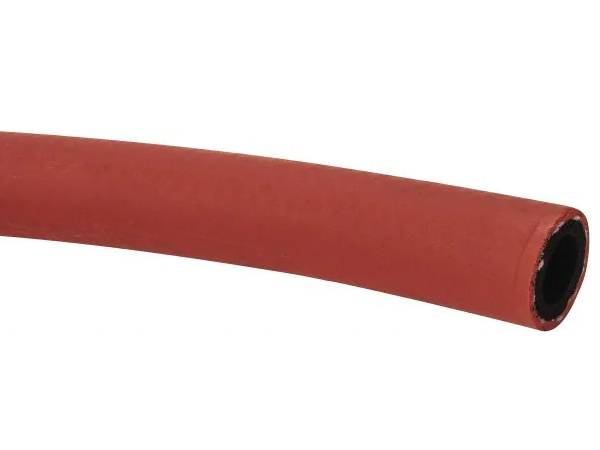

Red general purpose air rubber hose
EPDM Air/Water Hose

Applications:
General purpose rubber air hose for rental, construction and industrial applications.

Tube: Black, limited oil-resistant EPDM.
Cover: Red, smooth, excellent weather & ozone resistant EPDM.
Reinforcement: multiple plies of high tensile spiraled yarn.
Operating Temperature: -40°C (-40°F) to +95°C (+203°F).
Length: 50ft./coil.
Fittings: Brass MNPT; universal couplings with safety clips; barbed inserts, crimp couplings, combination nipples.
MOQ: 10 Coils.

Feature & Benefits:

  • EPDM tube and cover.
  • Medium oil resistance.
  • Safety factor 4:1.
  • Special plied reinforcement for coupling retention & kick resistance.
  • Compatible with abrasion, ozone, sunlight and weather.
  • Excellent for outside application.
  • Remain flexibility under low temperatures.
Multiple Air/Water Hose - EPDM
Nominal I.D. Nominal O.D. W.P. Bend Radius Spirals
inch mm mm psi inch
1/4 6 12.7 200 2.5 2
1/4 6 14 300 3.3 2
3/8 10 16.7 200 3.5 2
3/8 10 17.5 300 4 2
1/2 13 20.7 200 4.5 2
1/2 13 22.2 300 5 4
5/8 16 24.6 200 5.5 2
5/8 16 27 300 5.5 4
3/4 19 28.2 200 6 2
3/4 19 29.4 300 6 4
1 25 35.7 200 7 2
1 25 36.5 300 8 4
1-1/4 32 45.2 200 9 4
1-1/2 38 51.6 200 10 4

If you need to consult the price, please contact the business department by E-mail:

sales@industrialhose.org

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
