Wire reinforced high pressure air hose

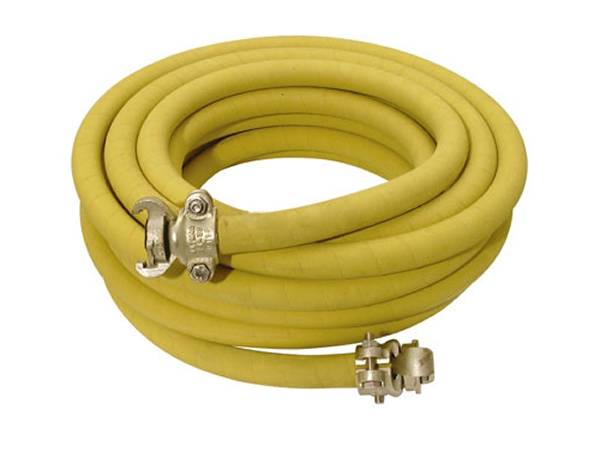

Yellow high pressure steel wire reinforced air hose with interlock crimp.
high pressure steel wire reinforced air hose.

Steel wire reinforced air hoses are found in the most severe applications where high working pressure, long service life and high safety factor are necessary. Steel wire high pressure air hoses are often used in open-pit or underground mining, construction and rock quarries. Hose cover is pin-pricked for releasing trapped air or gas.

  • Tube: smooth, synthetic rubber.
  • Cover: abrasion and weather resistant rubber.
  • Reinforcement: high tensile steel wire.
  • Surface: wrapped finish.
  • Temperature range: -40°F to +70°F (-40°F to +158°F).
  • Packaging: 50’ and 100’ per coil.
Hose code I.D. O.D. W.P. Weight per ft. Length/coil
inch inch psi ft. ft.
SWRAH-01 1/2 0.94 1000 0.37 50 or 100
SWRAH-02 3/4 1.22 750 0.53 50 or 100
SWRAH-03 1 1.50 735 0.73 50 or 100
SWRAH-04 1-1/4 1.81 750 0.94 50 or 100
SWRAH-05 1-1/2 2.01 750 1.21 50 or 100
SWRAH-06 2 2.60 600 1.84 50 or 100
SWRAH-07 2-1/2 3.15 500 2.34 50 or 100
SWRAH-08 3 3.80 500 3.01 50 or 100
SWRAH-09 4 4.80 500 4.40 50 or 100
