Steam hoses supply saturated steam and superheated water solution

Industrial steam hose brief introduction

Structure of steam hose

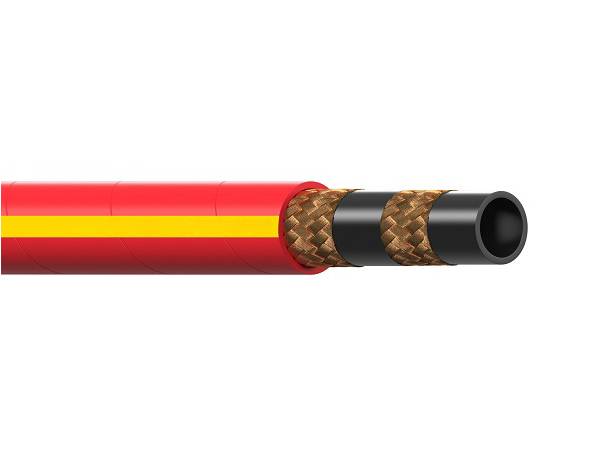

Red color steam hose

Industrial steam hose is suitable for handling saturated steam and superheated steam continuously below the temperature of 150°C or intermittent conveying below the temperature of 160°C. The steam hoses manufactured by us are made of high quality rubber. And steam hoses, whose reinforcement layers are made of braided steel wires, are highly resistant to heat and high temperature.

Steam hose applications:
suitable for steam cleaning, steam hammer, vulcanizing machines, injection molding machines and hot pressing equipment in all fields of industry.

Features:

  • Long service life.
  • Excellently resistant to high temperature, corrosion and high pressure.
  • Lightweight and flexible.
  • High strength and good anti-destructive performance.

Here are our steam hose products: PTFE steam hose and wire braid steam hose.

PTFE steam hose finds its applications in mechanical industry, electronic industry, military and chemical industry. The main feature is that it can convey highly corrosive media in the high temperature of 250°C because of its corrosion and high temperature resistance.

Here are two types of PTFE steam hoses

Natural smoothbore PTFE hose can work in the temperature range of -360°F to +550°F. The construction consists of inner smooth PTFE tube and outer stainless steel braided.

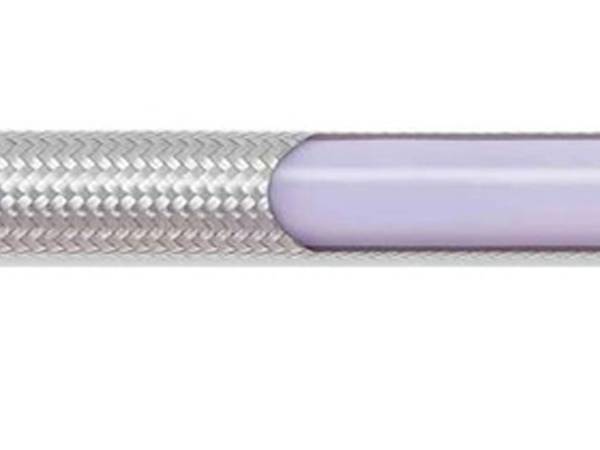

Inner structure of natural smoothbore PTFE steam hose
Natural smoothbore PTFE steam hose

Technical Parameters

No. I.D. (inch) W.P. (PSI) B.P. (PSI)
SH-NS-1/8 1/8 3500 14000
SH-NS-1/4 1/4 3000 12000
SH-NS-5/16 5/16 2745 10980
SH-NS-3/8 3/8 2000 8000
SH-NS-1/2 1/2 1750 7000
SH-NS-5/8 5/8 1500 6000
SH-NS-3/4 3/4 1000 4000
SH-NS-1 1 1000 4000

Convoluted PTFE hose can work in the temperature range of -360°F to +550°F. The construction consists of inner convoluted PTFE tube and outer stainless steel braided.

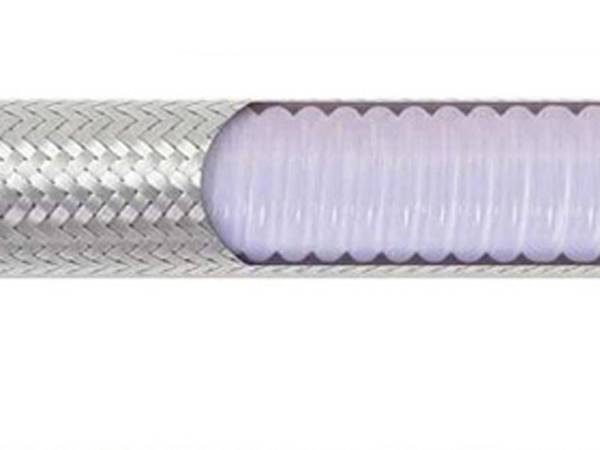

Inner structure of convoluted PTFE steam hose
Convoluted PTFE steam hose

Convoluted PTFE steam hose specification

No. I.D. (inch) W.P. (PSI) B.P. (PSI)
SH-CS-1/4 1/4 1545 6180
SH-CS-5/16 5/16 1545 6180
SH-CS-3/8 3/8 1545 6180
SH-CS-1/2 1/2 1545 6180
SH-CS-5/8 5/8 1470 5880
SH-CS-3/4 3/4 1245 4980
SH-CS-1 1 1035 4140
SH-CS-5/4 1-1/4 780 3120

Steel wire braided steam hose

Here we supply single wire braid steam hose and double wire braid steam hose. They are widely used for steam cleaning, steam hammer, pressing equipment, vulcanizing machines in industrial applications. The temperature can be up to 165 °C ~ 220 °C.

Advantages:

  • Made of high quality heat resistance synthetic rubber.
  • Lightweight.
  • Durable.
  • High strength.

Steel wire braid steam hose technical parameters:

No. Hose I.D Hose O.D Working Pressure Burst Pressure Min. Bend Radius Length
DN inch mm MPA psi MPA psi mm meters
SH-WB1-10 10 3/8 21.5 1.0 150 4.0 570 130 20/ 50
SH-WB1-13 13 1/2 24.5 1.0 150 4.0 570 180 20/ 50
SH-WB1-16 16 5/8 27.5 1.0 150 4.0 570 205 20/ 50
SH-WB1-19 19 3/4 30.5 1.0 150 4.0 570 240 20/ 50
SH-WB1-22 22 7/8 33.5 1.0 150 4.0 570 280 20/ 50
SH-WB1-25 25 1 37.0 1.0 150 4.0 570 300 20/ 50
SH-WB1-32 32 1 1/4 44.0 1.0 150 4.0 570 420 20/ 40
SH-WB1-38 38 1 1/2 50.5 1.0 150 4.0 570 500 20/ 40
SH-WB1-45 45 1 3/4 57.5 1.0 150 4.0 570 500 20/ 40
SH-WB1-51 51 2 63.5 1.0 150 4.0 570 630 20/ 40
SH-WB1-64 64 2 1/2 77.5 1.0 150 4.0 570 700 20/ 40
SH-WB2-10 10 3/8 23.0 2.0 300 6.0 860 130 20/ 50
SH-WB2-13 13 1/2 26.0 2.0 300 6.0 860 180 20/ 50
SH-WB2-16 16 5/8 29.0 2.0 300 6.0 860 205 20/ 50
SH-WB2-19 19 3/4 32.0 2.0 300 6.0 860 240 20/ 50
SH-WB2-22 22 7/8 35.0 2.0 300 6.0 860 280 20/ 50
SH-WB2-25 25 1 38.5 2.0 300 6.0 860 300 20/ 50
SH-WB2-32 32 1 1/4 45.5 2.0 300 6.0 860 420 20/ 40
SH-WB2-38 38 1 1/2 52.0 2.0 300 6.0 860 500 20/ 40
SH-WB2-45 45 1 3/4 59.0 2.0 300 6.0 860 500 20/ 40
SH-WB2-51 51 2 65.0 2.0 300 6.0 860 630 20/ 40
SH-WB2-64 64 2 1/2 79.0 2.0 300 6.0 860 700 20/ 40

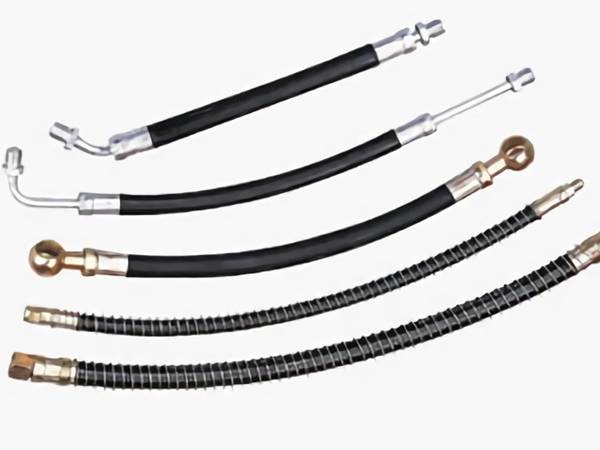

Different kinds of steel wire braided steam hose Steel wire braided steam hose with black smooth cover

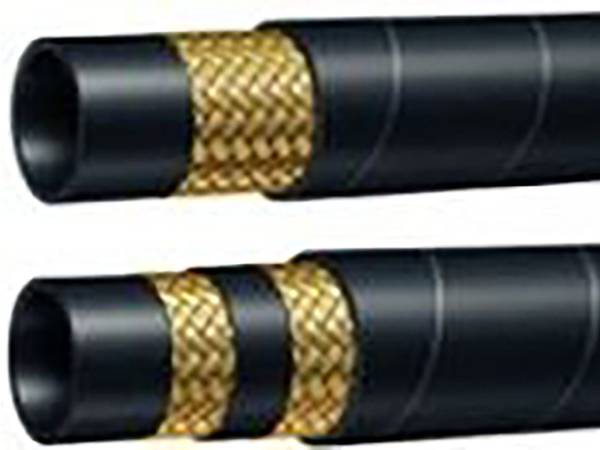

Five types of wire braid steam hose Single and double wire braid steam hoses

If you need to consult the price, please contact the business department by E-mail:

sales@industrialhose.org

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
