EPDM chemical hose to solve chemical fluids handle problems

EPDM chemical hose

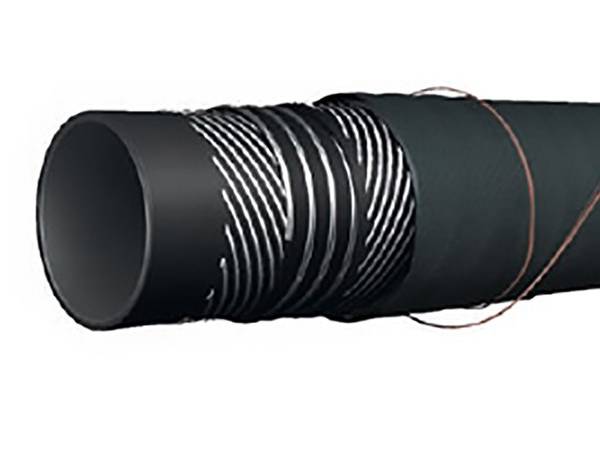

Black color and smooth EPDM chemical hose for 20 bar

Chemical hoses are used for transferring chemical fluids, such as acids, salts and organic compounds (alcohol, ether, ketone, etc.) and other products including aromatic hydrocarbons, chlorinated hydrocarbons that produced by chemical experiments in the chemical industry.

It’s well-known that acid transportation and chemical fluids transferring are rather difficult operations,because the chemical products often have high solvent power in these harsh environments. Therefore, our chemical hoses are designed of special insulation coating, which protects them from damaging. And they are also successfully used in the pharmaceutical and cosmetics industries.

Product introduction

  • Working temperature: -40 °C to +95 °C and the max can be up to +110 °C.
  • Safety factor: 4:1.
  • Inner layer: Black and smooth EPDM.
  • Reinforcement: Textile wrapped.
  • Outer layer: EPDM material, resistant to ozone and atmospheric effects.

Features:

  • Excellent flexibility.
  • Highly resistant to aging.
  • Resistant to abrasion.
  • Resistant to atmospheric effects.

Applications:

This EPDM chemical hose is suitable for air, water and many chemical products in many fields of industry.

Technical Specifications:

No. I.D. Wall thickness O.D. Min. B.R. Weight Length/coil
mm inch mm mm mm kg / m m
CH-EPDM-6 6.0 1/4 3.5 13.0 72 0.15 100
CH-EPDM-8 8.0 5/16 3.5 15.0 96 0.18 100
CH-EPDM-10 10.0 3/8 3.5 17.0 120 0.21 100
CH-EPDM-13 13.0 1/2 4.0 21.0 156 0.30 100
CH-EPDM-16 16.0 5/8 4.0 24.0 192 0.35 100
CH-EPDM-19 19.0 3/4 4.5 28.0 225 0.47 50
CH-EPDM-25 25.0 1 5.0 35.0 300 0.66 50
CH-EPDM-32 32.0 1-1/4 6.0 44.0 384 0.95 50
CH-EPDM-38 38.0 1-1/2 6.0 50.0 456 1.20 50
Working pressure is 20 bar.

EPDM chemical hose for 10 bar.

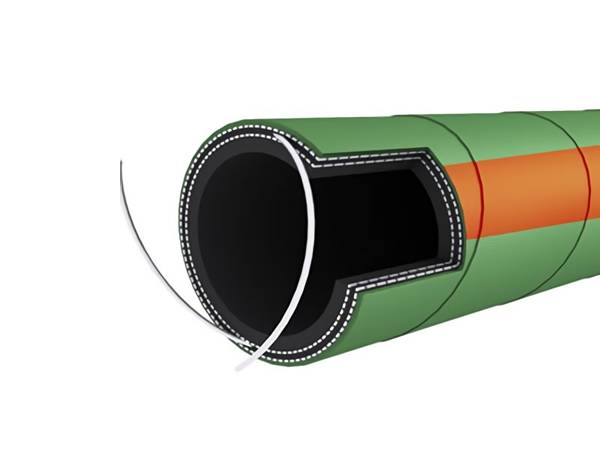

Green color with orange strip EPDM chemical hose for 10 bar.
